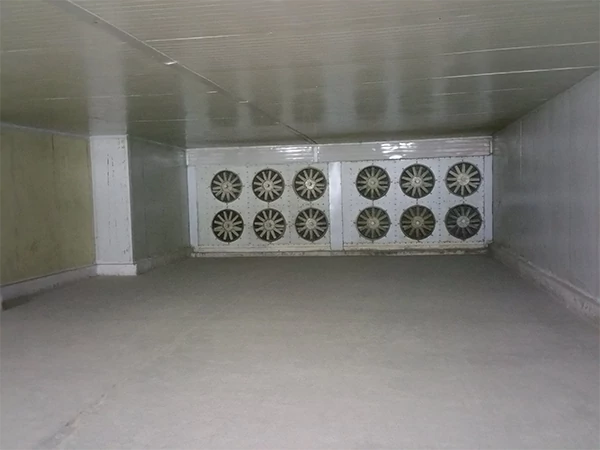

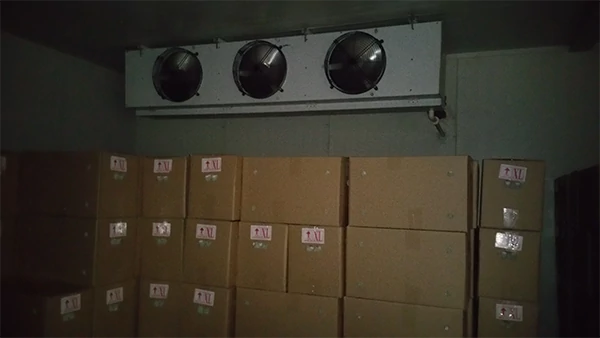

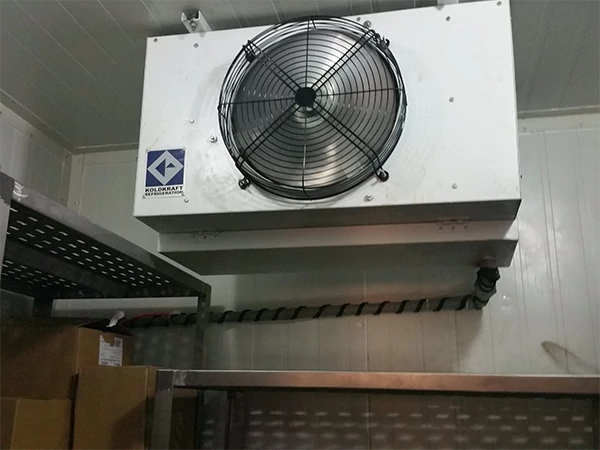

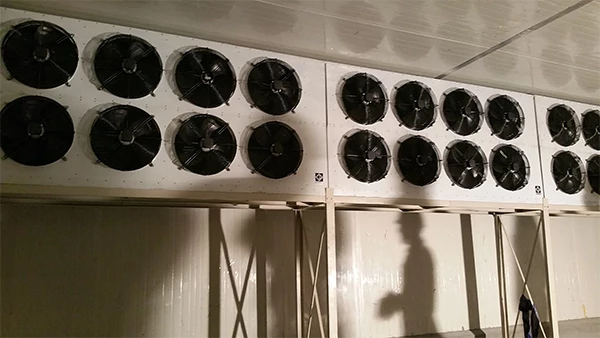

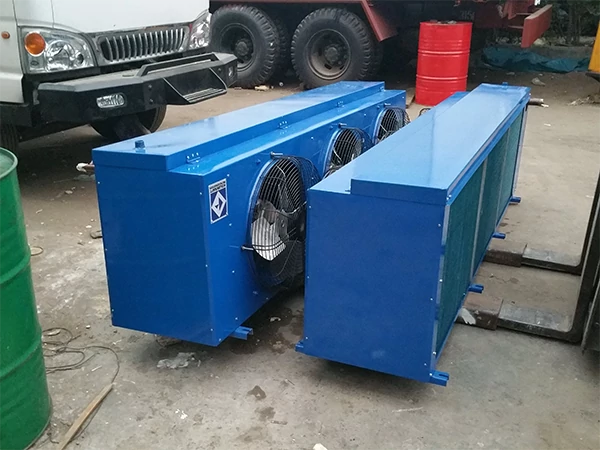

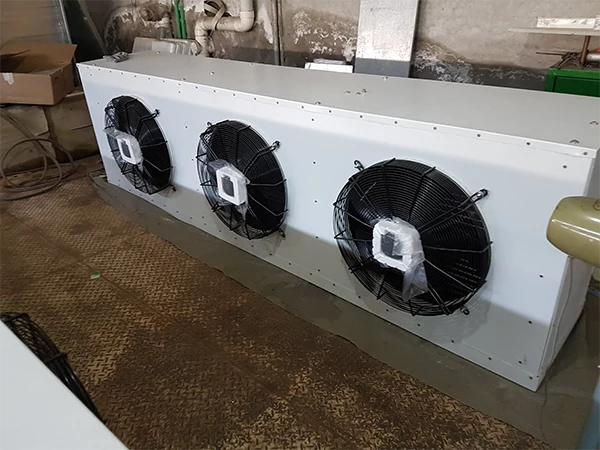

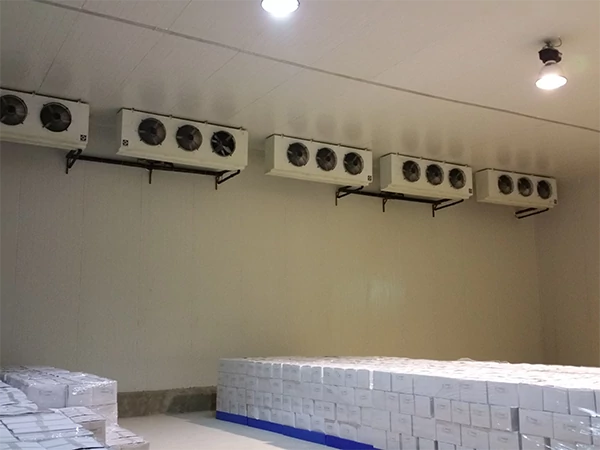

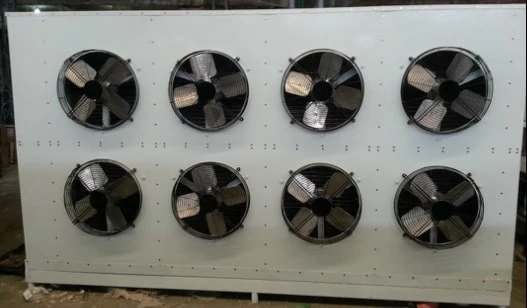

Koldkraft refrigeration unit coolers/ evaporators are designed to suit all kind of cooling requirements. Our evaporators give exceptional performance in cold rooms, blast chillers and blast freezers.
The evaporators can be used in low, medium and high temperature ranges.

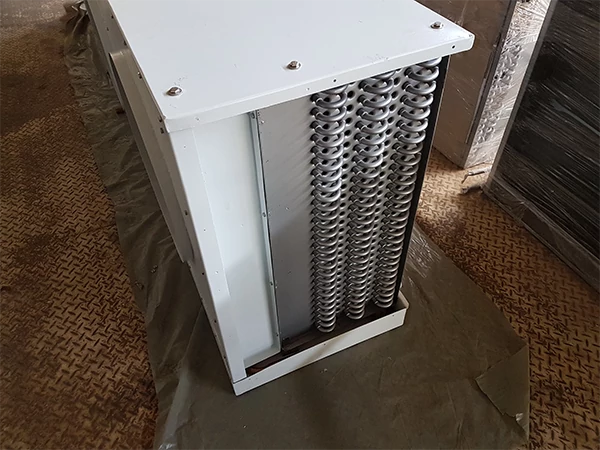

Coil: Made with seamless copper tube, mechanically expanded.

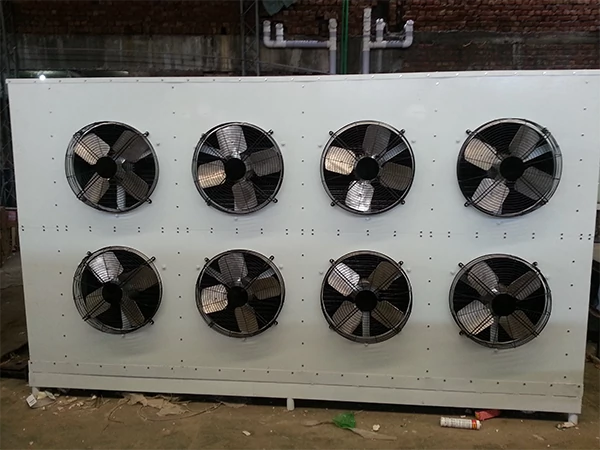

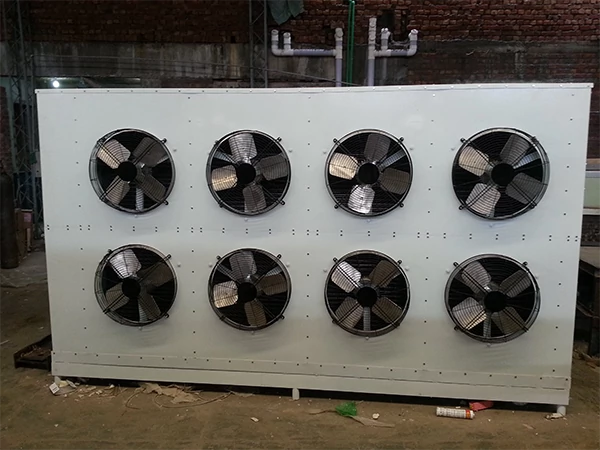

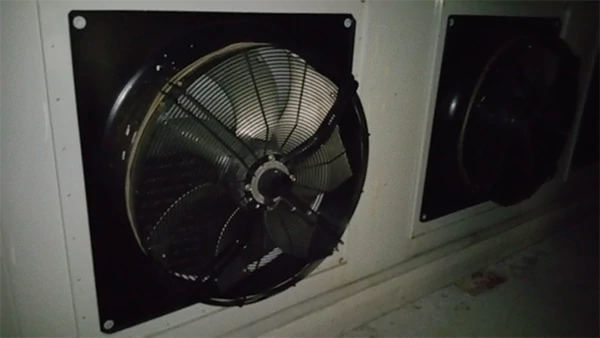

Fans: Heavy duty aluminium fan individually balanced
Motors: High efficiency ball bearing type with applications down to -40 degree Celsius.
Defrost: Air defrost, electric defrost and hot gas defrost available in all models.
|
4 FINS PER INCH -30 EVAP TEMPERATURE ELECTRIC OR HOTGAS DEFROST |
|||||||||
|
Model |
BTUS/HR |
Watts/ HR |
Fan Dia |
Motor H.P. |
W (in) |
H (in) |
D (in) |
Wt. (Kg) |
|
|
K*U4-1 |
4,000 |
1,173 |
20 |
3/4 |
40 1/4 |
25 1/2 |
22 1/2 |
110 |
|
|
K*U8-1 |
8,000 |
2,346 |
20 |
3/4 |
40 1/4 |
25 1/2 |
22 1/2 |
130 |
|
|
K*U12-1 |
12,000 |
3,519 |
20 |
3/4 |
46 1/4 |
25 1/2 |
22 1/2 |
190 |
|
|
K*U24-2 |
24,000 |
7,038 |
20 |
3/4 |
76 1/4 |
25 1/2 |
22 1/2 |
370 |
|
|
K*U36-2 |
36,000 |
10,557 |
20 |
3/4 |
76 1/4 |
31 1/2 |
22 1/2 |
440 |
|
|
K*U48-3 |
48,000 |
14,076 |
20 |
3/4 |
106 1/4 |
31 1/2 |
22 1/2 |
570 |
|
|
K*U72-4 |
72,000 |
21,114 |
20 |
3/4 |
136 1/4 |
31 1/2 |
22 1/2 |
665 |
|
|
K*U85-4 |
85,000 |
24,927 |
20 |
3/4 |
136 1/4 |
49 1/2 |
22 1/2 |
875 |
|
|
K*U108-4 |
108,000 |
31,672 |
20 |
3/4 |
136 1/4 |
49 1/2 |
22 1/2 |
900 |
|
|
6 FINS PER INCH -10 EVAP TEMPERATURE ELECTRIC OR HOTGAS DEFROST |
|||||||||
|
Model |
BTUS/HR |
Watts/HR |
Fan Dia |
Motor H.P. |
W(in) |
H(in) |
D(in) |
Wt.(kg) |
|
|
K*L15-1 |
15,000 |
4,399 |
20 |
3/4 |
46 1/4 |
25 1/2 |
22 1/2 |
200 |
|
|
K*L19-2 |
19,000 |
5,572 |
20 |
3/4 |
76 1/4 |
25 1/2 |
22 1/2 |
220 |
|
|
K*L30-2 |
30,000 |
8,798 |
20 |
3/4 |
76 1/4 |
31 1/2 |
22 1/2 |
400 |
|
|
K*L36-2 |
36,000 |
10,557 |
20 |
3/4 |
76 1/4 |
31 1/2 |
22 1/2 |
425 |
|
|
K*L41-2 |
41,000 |
12,023 |
20 |
3/4 |
76 1/4 |
31 1/2 |
22 1/2 |
446 |
|
|
K*L54-3 |
54,000 |
15,836 |
20 |
3/4 |
106 1/4 |
31 1/2 |
22 1/2 |
585 |
|
|
K*L61-3 |
61,000 |
17,889 |
20 |
3/4 |
106 1/4 |
31 1/2 |
22 1/2 |
620 |
|
|
K*L72-4 |
72,000 |
21,114 |
20 |
3/4 |
136 1/4 |
31 1/2 |
22 1/2 |
675 |
|
|
K*L81-4 |
81,000 |
23,754 |
20 |
3/4 |
136 1/4 |
31 1/2 |
22 1/2 |
726 |
|
|
K*L110-4 |
110,000 |
32,258 |
20 |
3/4 |
136 1/4 |
49 1/2 |
22 1/2 |
885 |
|
|
K*L138-4 |
138,000 |
40,469 |
20 |
3/4 |
136 1/4 |
49 1/2 |
22 1/2 |
910 |
|
NOTE INSERT AT*
E = ELECTRIC
H = HOT GAS RE-EVAP
G = HOT GAS REVERSE CYCLE
Air straighteners available for increased air throw.
|
6 FINS PER INCH -25 EVAP TEMPERATURE ELECTRIC OR HOTGAS DEFROST |
|||||||||
|
Model |
BTUS/HR |
Watts/HR |
Fan Dia |
Motor H.P. |
W(in) |
H(in) |
D(in) |
Wt.(kg) |
|
|
K*M8-1 |
8,000 |
2,346 |
20 |
3/4 |
40 1/4 |
25 1/2 |
22 1/2 |
120 |
|
|
K*M12-1 |
12,000 |
3,519 |
20 |
3/4 |
40 1/4 |
25 1/2 |
22 1/2 |
140 |
|
|
K*M16-1 |
16,000 |
4,692 |
20 |
3/4 |
46 1/4 |
25 1/2 |
22 1/2 |
200 |
|
|
K*M21-1 |
21,000 |
6,158 |
20 |
3/4 |
46 1/4 |
25 1/2 |
22 1/2 |
220 |
|
|
K*M33-2 |
33,000 |
9,677 |
20 |
3/4 |
76 1/4 |
31 1/2 |
22 1/2 |
400 |
|
|
K*M39-2 |
39,000 |
11,437 |
20 |
3/4 |
76 1/4 |
31 1/2 |
22 1/2 |
425 |
|
|
K*M44-2 |
44,000 |
12,903 |
20 |
3/4 |
76 1/4 |
31 1/2 |
22 1/2 |
446 |
|
|
K*M58-3 |
58,000 |
17,009 |
20 |
3/4 |
106 1/4 |
31 1/2 |
22 1/2 |
585 |
|
|
K*M66-3 |
66,000 |
19,355 |
20 |
3/4 |
106 1/4 |
31 1/2 |
22 1/2 |
620 |
|
|
K*M78-4 |
78,000 |
22,874 |
20 |
3/4 |
136 1/4 |
31 1/2 |
22 1/2 |
675 |
|
|
K*M88-4 |
88,000 |
25,806 |
20 |
3/4 |
136 1/4 |
31 1/2 |
22 1/2 |
726 |
|
|
K*M132-4 |
132,000 |
38,710 |
20 |
3/4 |
136 1/4 |
49 1/2 |
22 1/2 |
885 |
|
|
K*M166-4 |
166,000 |
48,680 |
20 |
3/4 |
136 1/4 |
49 1/2 |
22 1/2 |
910 |
|
|
8 FINS PER INCH +25 EVAP TEMPERATURE ELECTRIC OR HOTGAS DEFROST |
|||||||||
|
Model |
BTUS/HR |
Watts/HR |
Fan Dia |
Motor H.P. |
W(in) |
H(in) |
D(in) |
Wt.(kg) |
|
|
KAH12-1 |
12,000 |
3,519 |
20 |
3/4 |
40 1/4 |
25 1/2 |
22 1/2 |
160 |
|
|
KAH18-1 |
18,000 |
5,279 |
20 |
3/4 |
46 1/4 |
25 1/2 |
22 1/2 |
210 |
|
|
KAH23-1 |
23,000 |
6,745 |
20 |
3/4 |
46 1/4 |
25 1/2 |
22 1/2 |
230 |
|
|
KAH36-2 |
36,000 |
10,557 |
20 |
3/4 |
76 1/4 |
25 1/2 |
22 1/2 |
410 |
|
|
KAH43-2 |
43,000 |
12,610 |
20 |
3/4 |
76 1/4 |
31 1/2 |
22 1/2 |
435 |
|
|
KAH49-2 |
49,000 |
14,370 |
20 |
3/4 |
76 1/4 |
31 1/2 |
22 1/2 |
458 |
|
|
KAH64-3 |
64,000 |
18,768 |
20 |
3/4 |
106 1/4 |
31 1/2 |
22 1/2 |
600 |
|
|
KAH73-3 |
73,000 |
21,408 |
20 |
3/4 |
106 1/4 |
31 1/2 |
22 1/2 |
635 |
|
|
KAH86-4 |
86,000 |
25,220 |
20 |
3/4 |
136 1/4 |
31 1/2 |
22 1/2 |
690 |
|
|
KAH98-4 |
98,000 |
28,739 |
20 |
3/4 |
136 1/4 |
31 1/2 |
22 1/2 |
746 |
|
|
KAH145-4 |
145,000 |
42,522 |
20 |
3/4 |
136 1/4 |
49 1/2 |
22 1/2 |
905 |
|
|
KAH182-4 |
182,000 |
53,372 |
20 |
3/4 |
136 1/4 |
49 1/2 |
22 1/2 |
903 |
|
NOTE INSERT AT*
E = ELECTRIC
H = HOT GAS RE-EVAP
G = HOT GAS REVERSE CYCLE
Air straighteners available for increased air throw.
